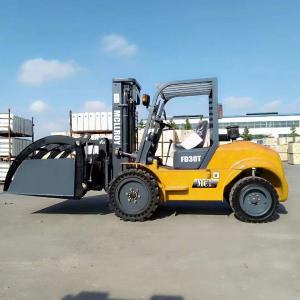

Front Tire 12-16.5-10PR Safe Handling Rough Terrain Forklift Truck Working Pressure18.5 Mpa Powerful Forklift
1. Products Description
Offering supreme performance and longevity, our two wheel drive rough terrain forklifts boasts two forward & one reverse gears resulting in higher speeds and greater grade ability. Perfect for moving heavy loads across rugged terrains, they can be easily operated in harsh environments such as mud, snow or ice. As a result, they make the perfect partner in lumber yards, retail, brick, block, and pipe applications. Tough and compact in every sense, the reliable truck is equipped with wide-base tires and enhanced brakes which provide ultimate traction. This allows operators to drive them over uneven or loose terrain and climb slopes as great as 45 degrees.
2. Specification
| Specification | FD30T-4WD |
| Rate Loading Weight | 3000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Hydraulic Manual /Auto 2R,0,2F |
| Fork Size | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 12-16.5-10PR |
| Rear Tire | 12-16.5-10PR |
| Overhead Guard Height | 2450 mm |
| Overall Length(with / without fork) | 4160 /3090 mm |
| Overall Width | 1600 mm |
Overall Height
(Mast extended/lowered) | 3000mm : 4350/2235 mm |
| Total Weight | 4900 KG |
Angle of Mast inclination
(forward /backward) | 6°/12° |
| Load Center | 500 mm |
| Minimum Ground Clearance(no-loading) | 250 mm |
3. Details and Advantages
The MCLLROY’S FD30T-2/4 rough-terrain forklift is designed for sectors of activity operating under demanding conditions (construction, wood industry, events, mining...).
A true rough-terrain forklift, equipped with a ground clearance of 37 cm which gives it an excellent crossing capacity.
Its width and wheelbase optimize the stability of the machine.
The masts available on this truck are designed to operate in a difficult environment or with long loads, and they are robust and easy to use.
Equipped with a torque converter transmission, our forklift offers 4 speeds to allow you to do your work efficiently.
4. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
| No | Part No | Description |
| 26 | FD30(35)-L1023 | Pin |
| 27 | FD30(35)-L1024 | StrutL.H |
| 28 | FD30(35)-L1025 | Spring |
| 29 | FD30(35)-L1026 | Rod |
| 30 | FD30(35)-L1027 | Pin |
| 31 | FD30(35)-L1028 | Washer,spring |
