Ergonom Outdoor Forklift Truck Max. Lifting Speed(full Loading) 550 mm/s
1. Products Description
An all-terrain (or rough-terrain) forklift truck is a material handling machine capable of performing and traveling on any type of ground. Built with the idea that these machines are used in the most demanding environments, MCLLROY all-terrain forklifts are built to remain efficient even in the most extreme conditions.
MCLLROY rough-terrain forklifts have exceptional driving ability. Whether on muddy, non-even, or gravel surfaces, they go where other machines cannot.
2. Specification
| Specification | FD30T - 2WD |
| Rate Loading Weight | 3000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Hydraulic auto 1R,0,1F |
| Fork Size | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 12-16.5-14PR |
| Rear Tire | 27x10-12-12PR |
| Overhead Guard Height | 2210 mm |
| Overall Length(without fork) | 2940 mm |
| Overall Width | 1550 mm |
Overall Height
(Mast extended/lowered) | 3000mm : 4350/2185 mm |
3. Details and Advantages

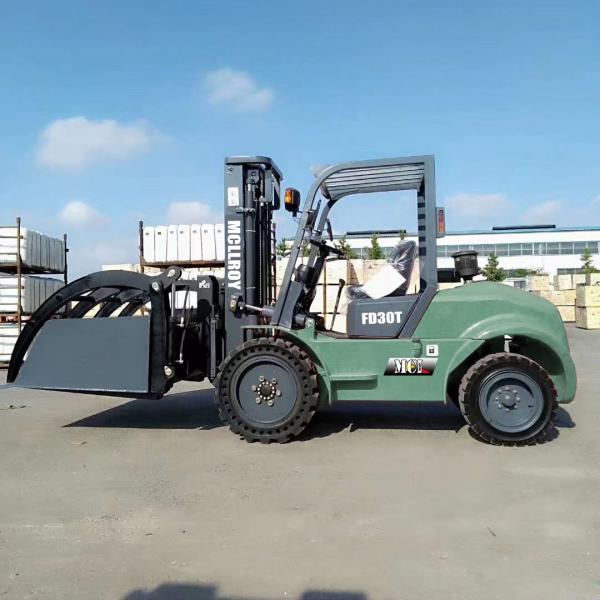

The MCLLROY’S FD30T-2/4 rough-terrain forklift is a rough-terrain forklift with 2 or 4-wheel drive.
The ground clearance and crossing capacity offer performance and stability on all types of ground and even with long loads.
Thanks to the varied choice of tires adapted to each situation, your versatility is enhanced.
This rough-terrain forklift truck has a 50 hp engine and a lifting capacity of 3000 kg.
For simplified maintenance, the hood offers wide access to the filtration components, gauges and engine.
The masts, a true MCLLROY know-how, are designed to guarantee robustness over time even in extreme conditions of use.
4. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.
6. Explosive View Of Main Parts
| No | Part No | Description |
| 26 | FD30(35)-L1023 | Pin |
| 27 | FD30(35)-L1024 | StrutL.H |
| 28 | FD30(35)-L1025 | Spring |
| 29 | FD30(35)-L1026 | Rod |
| 30 | FD30(35)-L1027 | Pin |
| 31 | FD30(35)-L1028 | Washer,spring |
