2500kg Work Load Small Wheel Loader,Disc Brake Mini Compact
1. Products Description of MCLLROY Wheel Loader
In general, for construction machinery, the four most important factors are: price, quality, operation, and after-sales.
The amount of shovel material and the stability of the loader depend on the cooperation of the loader frame.
The flexibility and light operation mainly depends on the hydraulic system of the loader.
The low failure rate depends on quality as well as the after-sales service.
MCLLROY wheel Loaders are widely used in the construction, municipal engineering, urban and rural gardens, lime, sand, cement factories, mines and other enterprises and institutions and departments. It is particularity applied to the narrow space for the loading operation of stone,sand and other construction materials.
2. Specification of MCLLROY Wheel Loader
| MCL946G | Metric Units |
| Engine Model | Yunnei 4102 Supercharged |
| RPM | 2400 |
| Rated Power | 76 kW |
| Emissions | EU Stage II |
| Operating Weight | 6350 kg |
| Rated Load | 2200-2500 kg |
| Bucket Capacities | 1.4 m³ |
| Max. Travel Speed | 45 km/h |
| Gear Box | CVT
300 split torque converter |
| Axle | Large hub |
| Axle Base | 2600 mm |
| Brake | Air Brake |
| Hydraulic Cycle time - lift | ≤ 10 s |
| Min. Ground Clearance | 370 mm |
| Wheel Base | 2100 mm |
| Reach at Max.Dump Height | 3600 mm |
| Dump Reach | 1180 mm |
| Overall Length - With Bucket | 6660 mm |
| Overall Width | 2300 mm |
| Overall Height | 3000 mm |
3. Details and Advantages of MCLLROY Compact Wheel Loader
1) Stable and proven hydraulic system with triple-wire hydraulic hoses for short cycle times and efficient operation.
2) With an anti-rollover cab, safety, guaranteed.The use of high pressure tempered glass makes it less likely that people will be injured even if the glass breaks.
3) Ergonomic adjustable seat for less fatiguing driving.
4) The general dashboard and integrated hydraulic operating lever design make driving simple and easy to handle.
4.Attachment of MCLLROY Wheel Loader

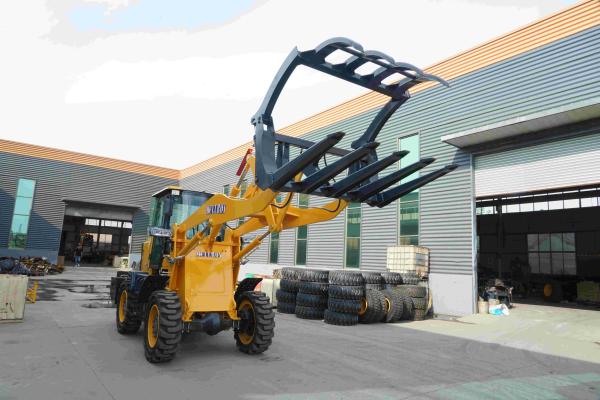

MCLLROY compact wheel loader can be equipped with optional quick hitch , and this quick hitch enables this compact wheel loader to change quickly among multiple attachments, such as V-shaped snow plow, snow bucket, drum grab, barrel grapple, snow blower, street sweeper and sand bucket etc.
