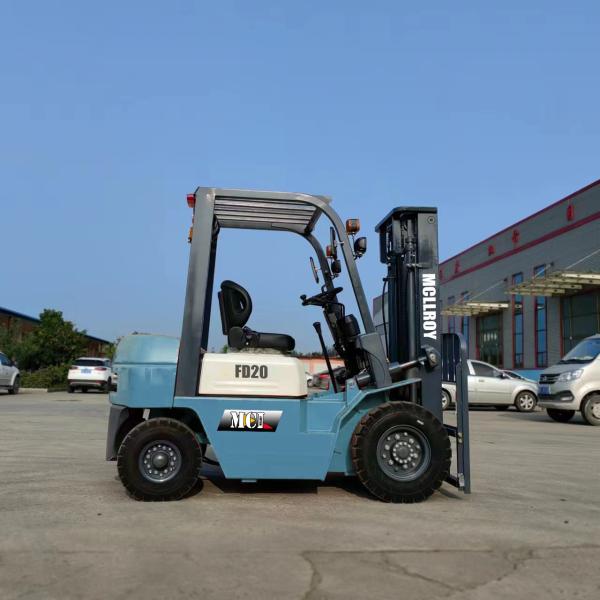

Quick Assembly Counterweight Forklift Truck Overall Length(With/Without Fork) 3523/2453 Mm
1. Products Description
The forklift, Green Diamond, is celebrated for its environmental sustainability, exceptional quality, dependability, and high investment worth similar to that of diamonds.
Operators will value its minimal noise and vibration, comfortable working conditions, and cutting-edge advancements in Ergo Centric steering, hydraulics, and controls.
Safety protocols, such as the integration of the IPS2 Integrated Presence System and advanced brake systems, are implemented to improve operator safety.
Moreover, each system and component is carefully chosen and designed to minimize downtime and maintenance costs.
2. Specification
| Specification | FD20 |
| Rate Loading Weight | 2000 KG |
| Mast Stage | 2 Normal /2 Fully free/3 Fully free |
| Lifting Height | 3000/4000/4500/5000/6000/6500mm |
| Engine Model | XinChai 490 BPG/Mitsubishi S4S/Isuzu C240 |
| Rate Power | 36.8/35.3/35.4 KW |
| Transimission | Manual/Hydraulic auto 1R,0,1F |
| Fork Length | 920/1070/1220/1500 mm |
| Tire Type | Air / Solid |
| Front Tire | 7.00-12-12PR |
| Rear Tire | 6.00-9-10PR |
| Overhead Guard Height | 2140 mm |
| Overall Length(with/without fork) | 3523/2453 mm |
| Overall Width | 1160 mm |
Overall Height
(Mast extended/lowered) | 3000mm: 4220/2060 mm |
| Total Weight | 2660 KG |
| Front Overhang | 448 mm |
| Free Fork Height | 100 mm |
3. Details and Advantages
The Plus Cab panel cabin provides exceptional visibility through laminated glass and all-around protection from weather elements.
The clear-view construction ensures exceptional visibility through the mast, fork carriage, and overhead guard, enhancing operator safety and efficiency.
The operator experiences a low noise level of just 78 dBA and minimal vibration from the powertrain, enhancing comfort and reducing fatigue.
The low-noise air intake is directly connected to the intake filter for smooth and quiet performance.
The fully hydrostatic steering system is responsive, precise, and effortless for the operator, requiring minimal maintenance.
4. Optional Configurations
| 1 | Solid tires
(the Advanced brand or equivalent) |
| 2 | Automatic transmission(1-4.5Ton) |
| 3 | Sideshift |
| 4 | Thicken Toyota seat (no shock absorber) |
| 5 | Toyota seat (with shock absorber) |
| 6 | Fork positioner |
| 7 | Closed cab |
| 8 | Double front tires(1-5Ton) |
| 9 | Normal double mast:3300-4000mm. |
| 10 | Full free double mast:3000-4000mm. |
| 11 | Full free triplex mast:4500-7500mm. |
| 12 | Fork length:920/1370/1550 mm |
| 13 | Extension fork |
5. Attachment
A diverse selection of high-quality masts and attachments ensures precise compatibility and optimal configuration for various applications.
The carriage design features a single center bar, providing a large fork adjustment range that enhances functionality.
The range of available attachments includes a paper roll clamp, rotating bale clamp, load stabilizer, multi-drum clamp, bale clamp, drum clamp, dumping clamp, crane arm, string pole, sideshifter, rotating forks, fork extender, load release device, carton clamp, push-pull device, bucket, hook, and lengthened fork.

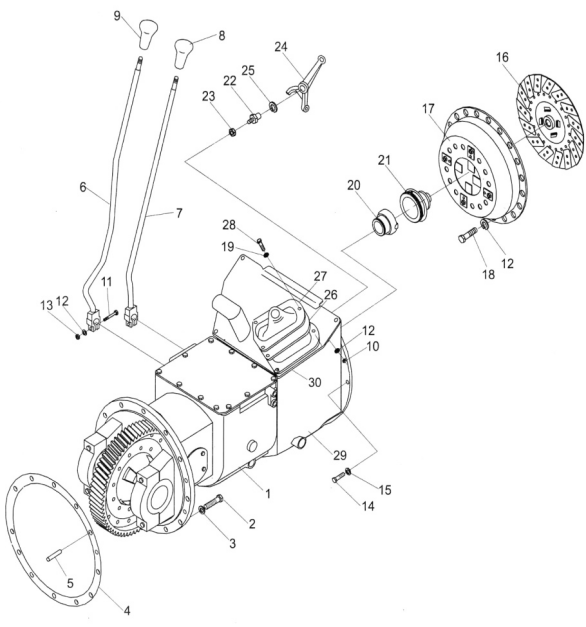

6. Explosive View Of Main Parts
| No | Part No | Description | Q'ty | Remark |
| 1 | FD30MA-C1000 | Drive unit | 1 | |
| 2 | GB/T5785-1986 | Bolt | 12 | |
| 3 | GB/T93-1987 | Washer lock | 12 | |
| 4 | FD30MA-C1101 | Packing | 1 | |
| 5 | GB/T119-1986 | Pin,parallel | 1 | |
| 6 | FD30MA-C1102 | Lever,speed chang | 1 | |
| 7 | FD30MA-C1103 | Levery,directi onchang | 1 | |
| 8 | FD30MA-C1104 | Knob,dirction | 1 | |
| 9 | FD30MA-C1105 | Knob,speed | 1 | |
| 10 | GB/T41-1986 | Nut | 2 | |
| 11 | GB/T5782-1986 | Bolt | 2 | |
| 12 | GB/T93-1987 | Washer lock | 10 | |
| 13 | GB/T6170-1986 | Nut | 2 | |
| 14 | GB/T5783-1986 | Bolt | 9 | |
| 15 | GB/T93-1987 | Washer lock | 9 | |
| 16 | FD30MA-C1106 | Clutch disc subassembly | 1 | |
| 17 | FD30MA-C1107 | Clutch cover | 1 | |
| 20 | FD30MA-C1108 | Retainer bearing | 1 | |
| 21 | FD30MA-C1109 | Bearing,thrust | 1 | |
| 22 | FD30MA-C1110 | Pivot,clutch yoke | 1 | |
| 24 | FD30MA-C1111 | Yoke,clutch | 1 | |
| 25 | FD30MA-C1112 | Snap ring | 1 | |
